ECONTROL VM-100 (concentric) is the most competitive range of Butterfly Valves for all standard services wth the highest quality standards keeping the most competitive costing.
ECONTROL VM-200 (double or triple eccentric) is a highly appreciated range of High Performance Butterfly Valves for all critical services and high-pressure services (up to rating ANSI 900#) with great availability of special materials and configurations.
ECONTROL VM-300 (double or triple eccentric)is our range of large, over-sized (up to DN 200") and made-to-measure designed butterfly valves and dampers.
All VM-100, VM-200 and VM-300 valves are available in manual or actuated version (pneumatic, electric, hydraulic, electro-hydraulic, pneumo-hydraulic...) and are compliant to the main European Union and international industry standards including fire-safety, immersion testing, gas testing, cryogenic testing, helium leakage testing, etc...
ECONTROL has furthermore applied all the expertise of the Valve Engineering Unit (V.E.U.) in enforcing the butterfly valve range as one of its strongest flow control solution and a wide range of materials is available from ductile iron to highest grade and exotic super duplex stainless steels, monel, inconel, titanium that are proven and certified for all kinds of industry from potable water transmission to highly corrossive mining applications.
VM-100, VM-200 and VM-300 butterfly valves family provide an integral flow control solution for customers from small diameters to large 200" valves with all types of operation and actuation possibilities and engineered, designed, built, tested and guaranteed by ECONTROL professionals.
Manufactured sizes | DN 25 thru DN 6000 / NPS 1" thru NPS 240". Higher or special sizes may be developed upon request, please enquiry |
---|---|
Pressure ratings | PN2, PN6, PN10, PN40, PN100 / ANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#. Please enquiry for higher or lower ratings |
Valve connections | ASME B16.5 (FF, RF, RTJ), ASME B16.47 Series A or B, MSS SP-44, Wafer, Lugged. Please enquiry for special connections |
Standardization | API 609, ASME B16.34, API 607, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175. Please enquiry for other standards |
Body | ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations |
---|---|
Trim | ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations |
Seat(s) | PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations |
Sealing | BUNA-N, EPDM, VITON, Flexible graphite, FKM, Nitrile, Neoprene. Please enquiry for different material configurations |
Catalogue request | Click here to request a catalogue |
---|

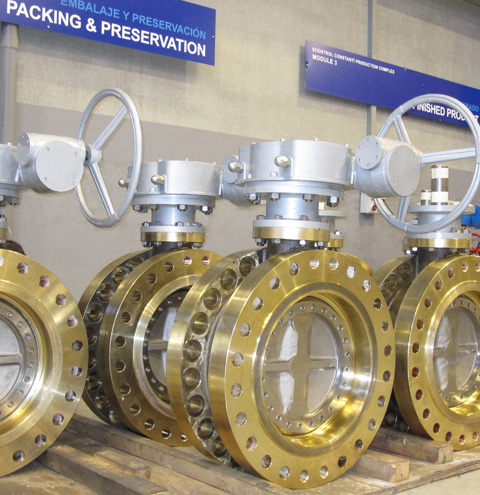

24" ANSI 600# (API 609)
Flanged valves for Sea Water service

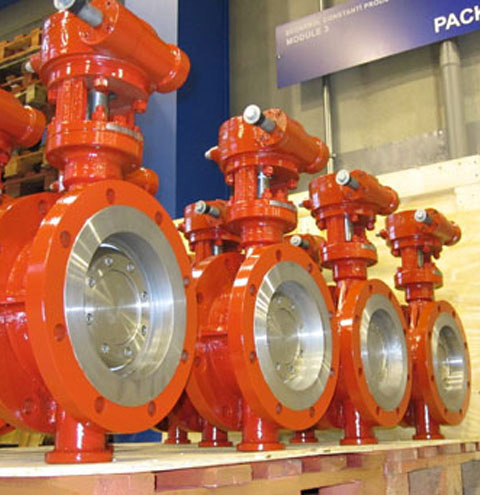

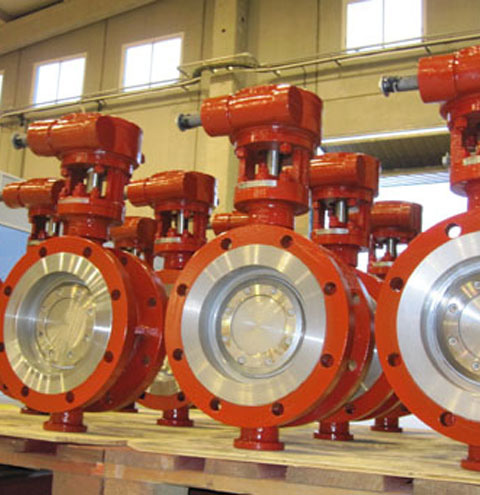

6" ANSI 300# (API 609, API 607)
during packing stage

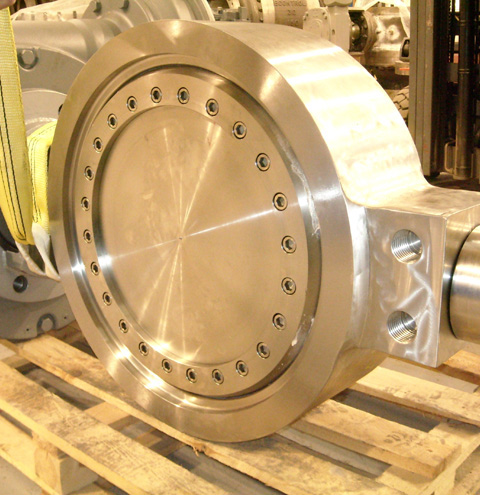

24" ANSI 600# (ASME B16.34)
High Performance Severe service valve

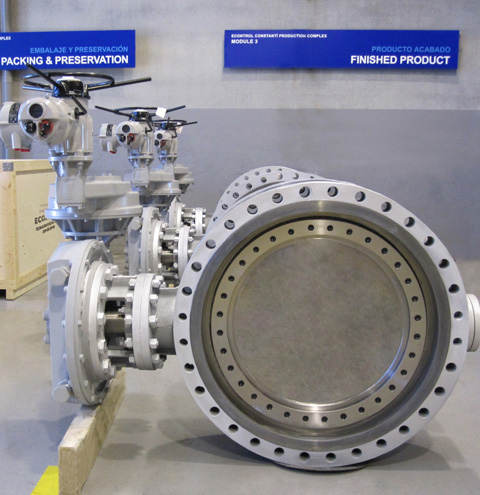

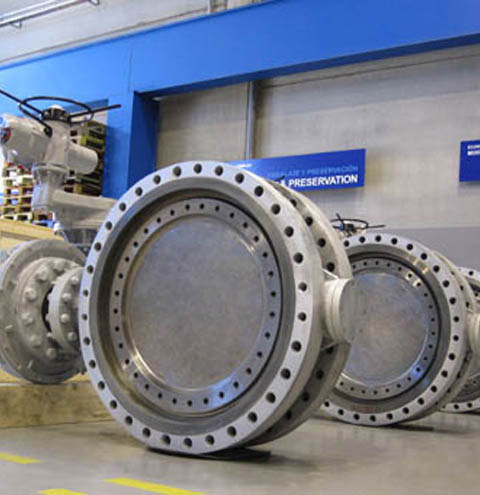

42" ANSI 300# (API 609, API 607)
with Electric actuator

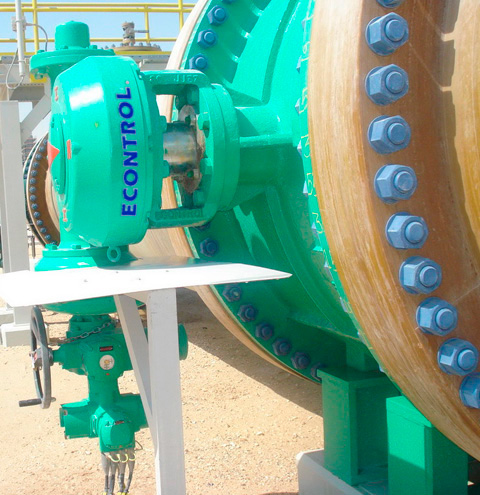

DN 2000 (80") PN16 (ASME B16.34)
for Cooling Water service

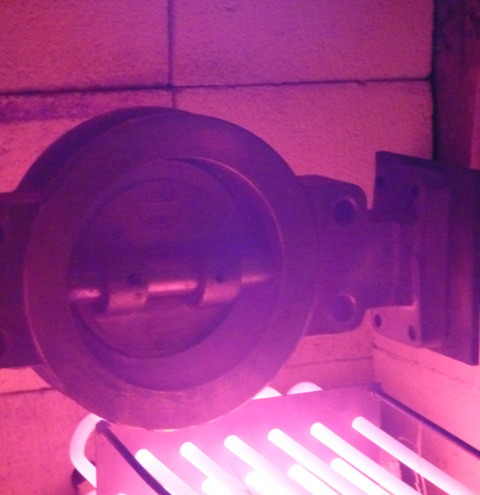

18" ANSI 300# (API 609, API 607)
High Temperature test

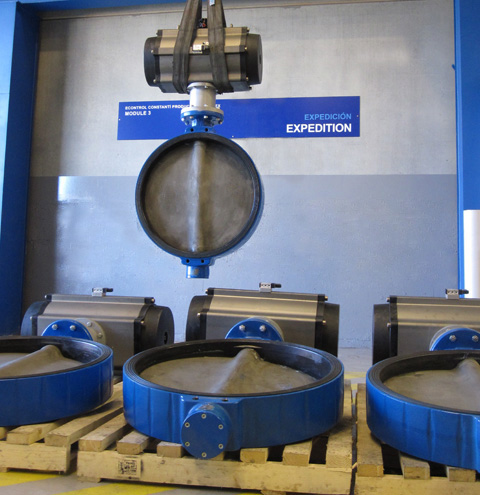

DN 900 (36") PN 16 (ASME B16.34)
Rubber Lined with Pneumatic actuator
6" ANSI 300# (API 609, API 607)
during packing stage
42" ANSI 300# (API 609, API 607)
with Electric actuator
