Control Valves

In 2007 ECONTROL became Europe's most valuable control valve company. Remarkably, our control valve division is worth more than all other divisions combined. ECONTROL is the undisputed European leader in control valve design, development, manufacturing & service. Over 5.000 control valves are manufactured and exported every year from ECONTROL Spain production complex.

The ECONTROL current control valve family lineup:
• VC-100 series globe control valves
• VC-100-AR self-regulated pressure control valves
• VM-200 high performance butterfly control valves
• eV V-port control valve
• VP-100 control plug valve

The ECONTROL VC-100 and VC-101 range of globe control valves are a time-tested icon in regulation service. The VC-100s are ECONTROL's main contribution to all process industries throughout Europe & worldwide and have been successfully in service over the last three decades.
The VC-100s feature the ultimate range of designs in two-way and three-way arrangement (single seated, double seated...) and optional features (noise reduction trim, anti-cavitation trim, bespoke designs...) is available. Our team at the V.E.U. has developed designs and individualized solutions for the most demanding customers worldwide.
The award-winning ECONTROL SMARTEC® software integrates valve design, sizing and a cutting-edge dynamic flow simulator to precisely engineer the solution customer needs. The V.E.U. is interconnected to the production tools at ECONTROL for a completely digitalized optimum production process.

ECONTROL SMARTEC® software

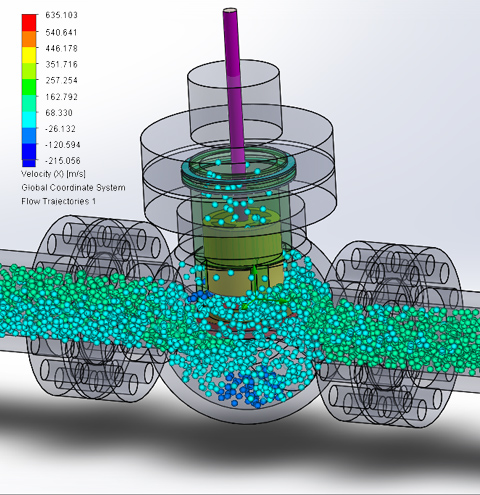

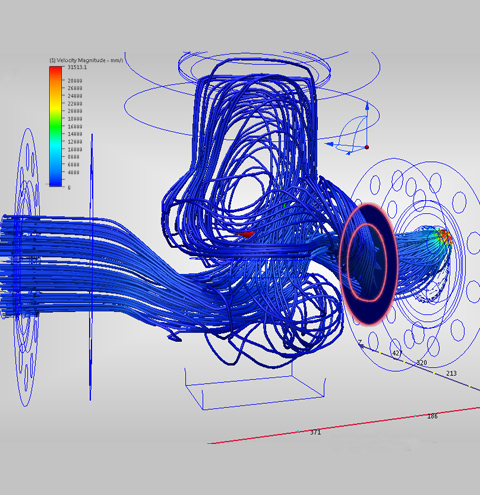

Turbulent Flow Simulation


ECONTROL SMARTEC® software

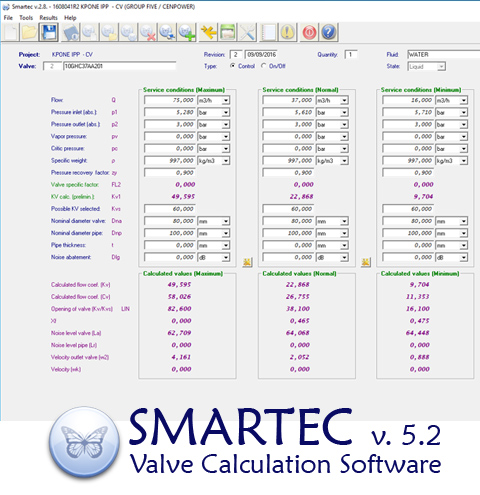

Control Valve Sizing Screen


ECONTROL SMARTEC® software
Velocity Calculation through valve


ECONTROL strives to be an integral control valve solution provider. The control valve family lineup includes our other top performers: the ECONTROL VM-200 high performance butterfly control valves and the eV V-port ball control valve, first introduced by ECONTROL in 1999. The widest range of materials to cope with all resistance challenges is offered: from ductile and cast iron to carbon steel and low temperature steels, special alloys, duplex and super duplex stainless, special alloy steels (Monel, Inconel, Avesta...), all grades of titanium. Cast or forged body construction is available for high pressure and severe duty applications.
The control valve family products are qualified, certified and chosen by worldwide operators, end users and EPC contractors dealing with all types of process management applications in oil & gas, petrochemicals, power generation, water desalination and water process, pharmaceuticals,...

Manufactured sizes DN 15 thru DN 900 / NPS 1/4" thru NPS 36". Higher or special sizes may be developed upon request, please enquiry
Pressure ratings ANSI 150#, ANSI 300#, ANSI 600#. ANSI 900#, ANSI 1500#, ANSI 2500#. Please enquiry for higher or lower ratings
Valve connections ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, API 605, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquiry for special connections
Standardization BS 1873, API 623, FCI 70-2, API 6D, API 600, API 609, ASME B16.34, API 6FA, API 607, BS 6755 Part 2, ASME B16.10, API 598, GOST, JIS, NACE 01-MR-0175. Please enquiry for other standards
Body ASTM A216, A105, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations
Trim ASTM A216, A105, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL. Please enquiry for different material configurations
Seat(s) PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome), TC (Tungsted carbide). Please enquiry for different material configurations
Sealing BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene. Please enquiry for different material configurations

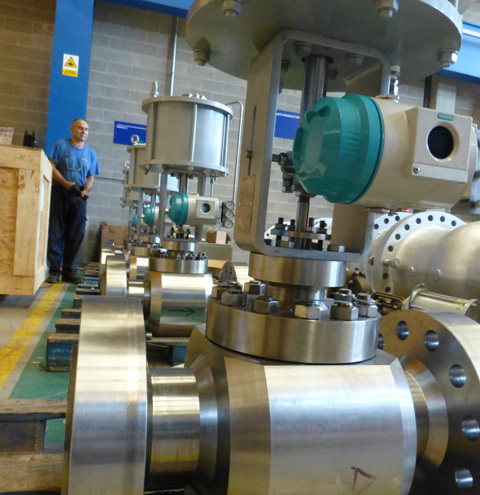

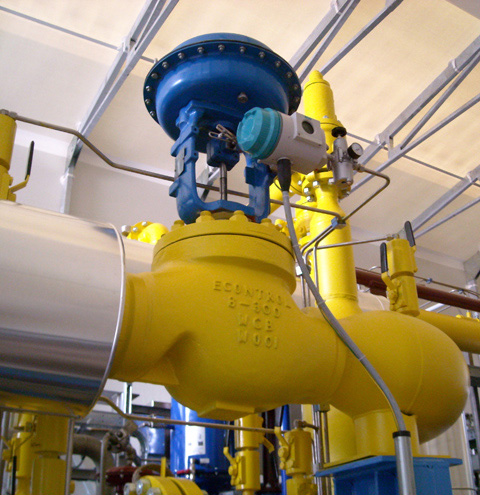

8" ANSI 300# Globe Control Valve
with SIEMENS® SIPART PS2 Positioner


4" ANSI 2500# Globe Control Valve
with SIEMENS® SIPART PS2 Positioner

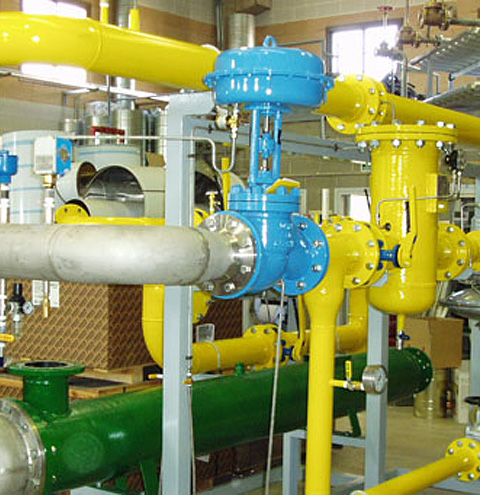

DN 100 (4") PN 16 Globe Control Valve
for gas process plant

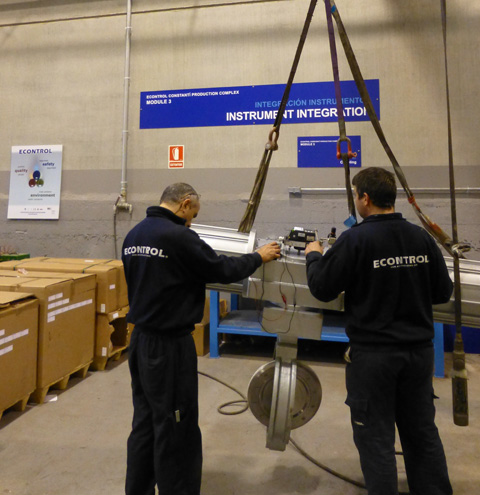

DN 300 (12") PN 16 Butterfly Control Valve
during control panel integration

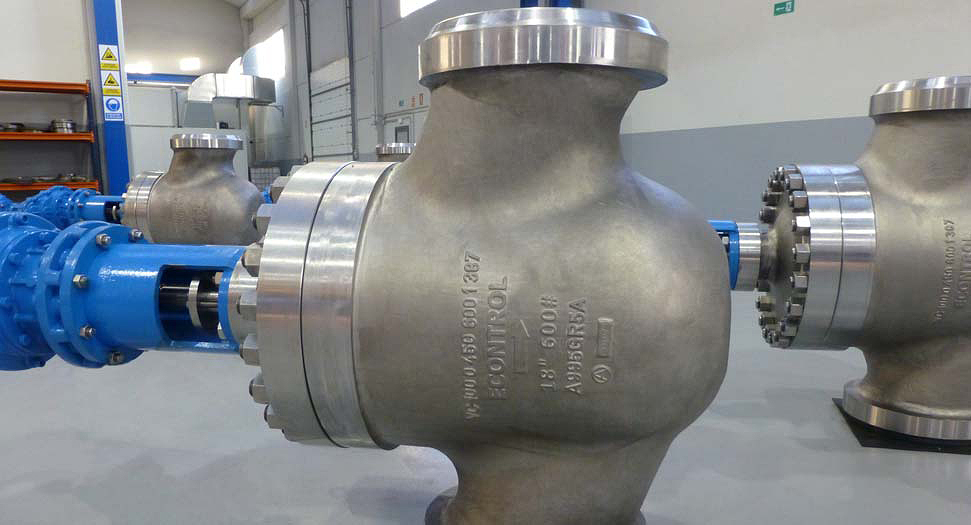

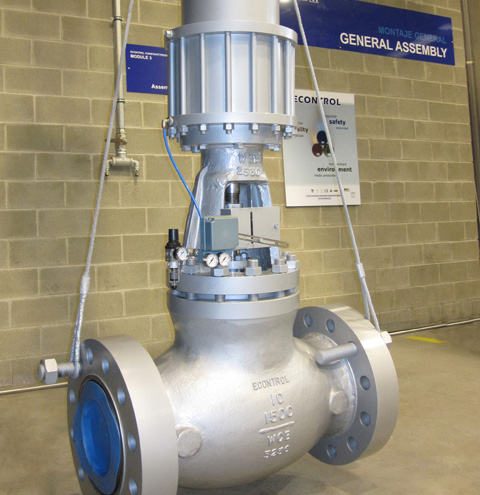

10" ANSI 1500# Globe Control Valve
for high pressure severe duty

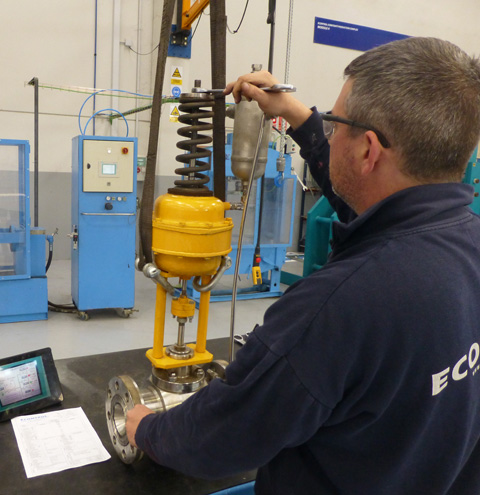

3" ANSI 150# Self-Regulated PCV
during set point adjustement

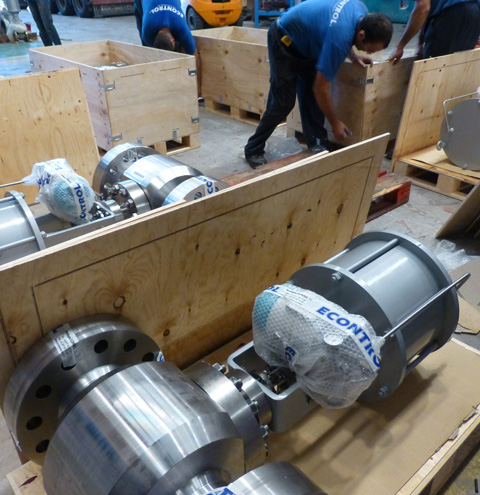

6" ANSI 1500# Globe Control Valves
during packing stage

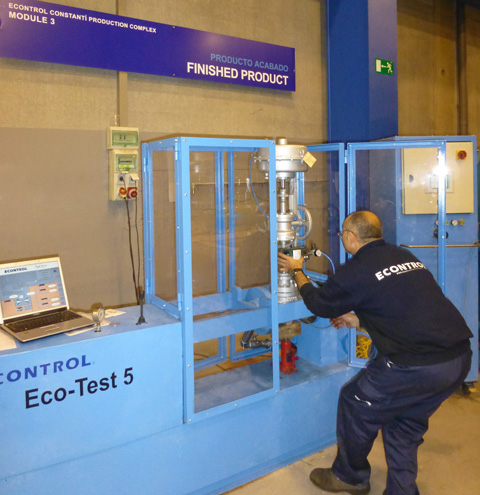

2" ANSI 300# Globe Control Valve
during testing and calibration

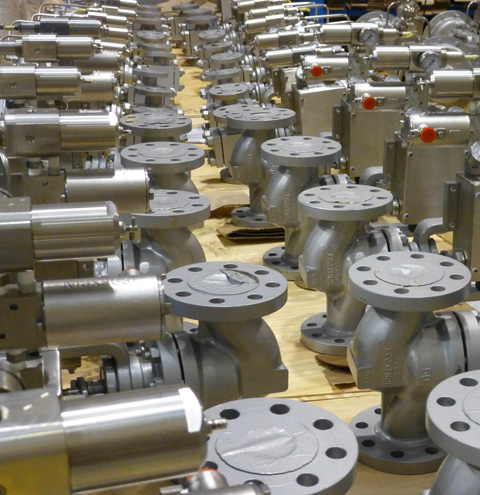

Globe Control Valves
during packing stage
