ECONTROL Post Indicator Valves VG-100-PIV series are designed to operate non-rising stem (inside screw) gate valves of our VG series, which are used to control an underground water supply to automatic sprinkler, water spray deluge, fire water line, foam-water deluge, or standpipe fire protection systems. PIV permit operation of underground valves while providing an above ground useful visual indication as to whether the valves are open or shut, in addition to a means for locking the valves in a particular position. The valve posts provide for valve operation from outside of the protected property and therefore the opportunity for immediate valve operation in an emergency situation.
VG-100-PIV feature a telescoping stem that can be adjusted to its final position without field cutting of the stem. This solution also permit easier setting of the “OPEN” and “SHUT” visual plates (before the post reaches its final position); easier adjustment of the post length during the initial installation; and, ready re-adjustment of the post length, if there is a modification in the location of the final grade.
VG-100-PIV A series accommodate 4” to 14” size post indicator valves (PIV) requiring 14 to 43 turns to open and that are listed or approved for fire protection system service. The B series will accommodate 16” to 32” size post indicator valves requiring 49 to 96 turns to open. Indicator Posts are standard for use with left hand opening valves; however, they may be provided upon request with right hand opening valves or converted in the field for use with a right hand opening valve by changing the left hand opening post head to a right hand opening.
As an additional feature, VG-100-PIV series allow direct attachment of a 1/2 inch NPT mounting electric supervisory switching device which can be used by proprietary and central stations to monitor the open position of the Indicator Post.
|Manufactured sizes||NPS 4" thru NPS 32". Lower, higher or special sizes may be developed upon request, please enquiry|
|Pressure ratings||ANSI 150#, ANSI 300#. Please enquiry for higher or lower ratings|
|Valve connections||ASME B16.5 (FF, RF), MSS SP-44. Please enquiry for special connections|
|Standardization||API 6D, API 600, API 602, API 603, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175, GOST, JIS. Please enquiry for other standards|
|Body||ASTM A216, A105, A126, GGG-40, C95300, C95800. Please enquiry for different material configurations|
|Trim||ASTM A216, A105, A126, GGG-40, C95300, C95800. Please enquiry for different material configurations|
|Seat(s)||PTFE, NBR, ENP (Electroless nickel plating), HC (Hard chrome). Please enquiry for different material configurations|
|Sealing||BUNA-N, EPDM, VITON, HNBR. Please enquiry for different material configurations|
|Catalogue request||Click here to request a catalogue|
Post Indicator Valves

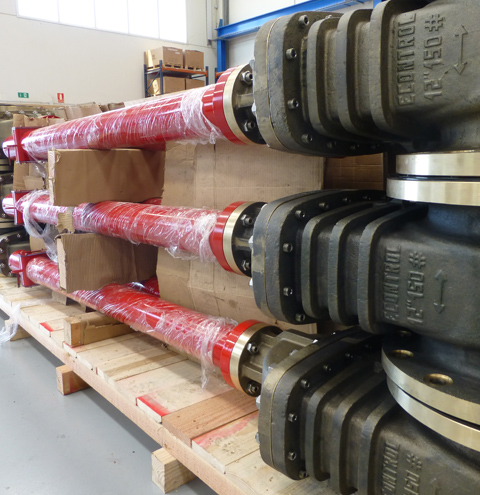

during packing stage

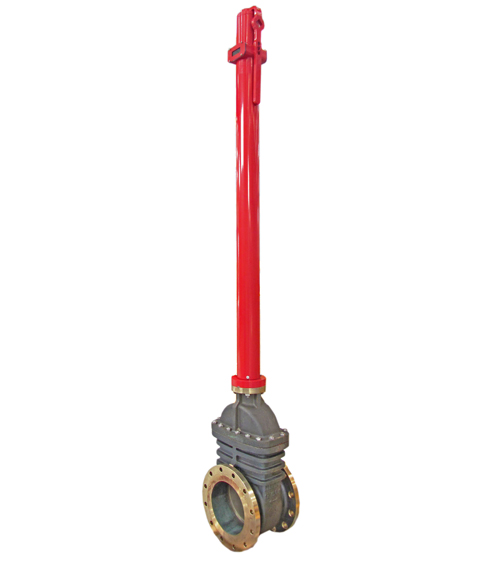

Post Indicator Valve

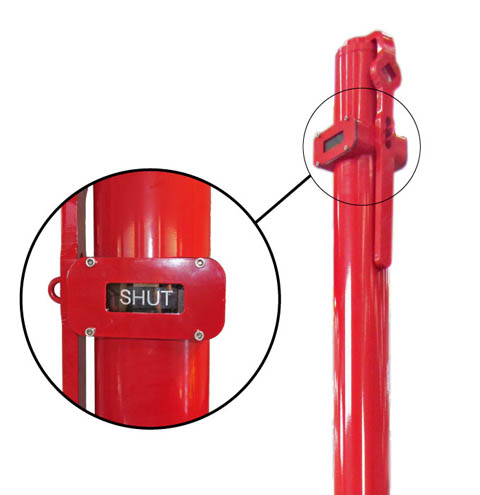

open/shut visor detail
Post Indicator Valve
14" ANSI 150# Post indicator valves

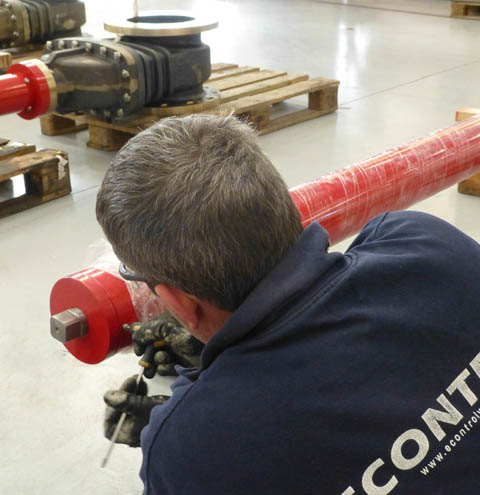

during visual indicator fine tuning
12" and 14" ANSI 150# (API 6D)

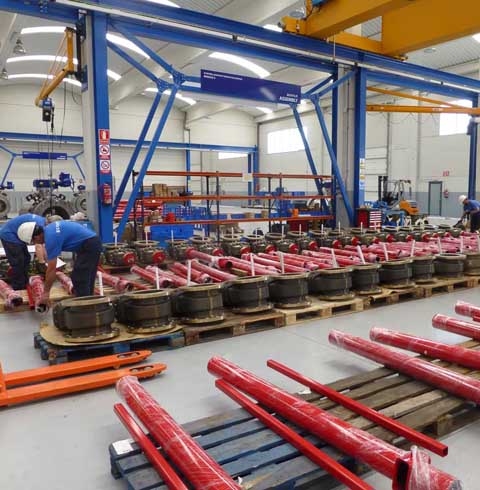

during assembly stage

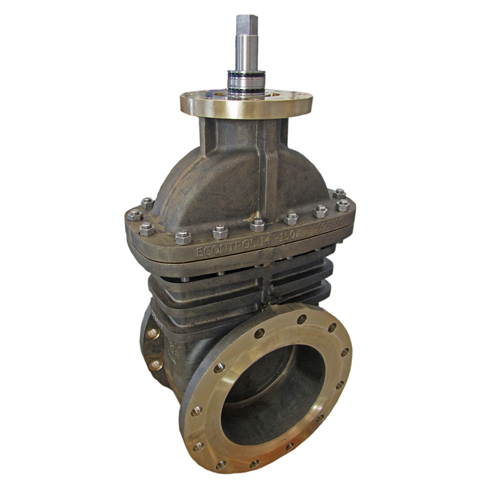

12" ANSI 150# Post indicator valves
